RM SERIES COOLING TOWERS

COUNTER FLOW COOLING TOWERS
  • RM-Series
  • RM-Series

Counterflow cooling towers play a crucial role in cooling water for industrial and HVAC applications by utilizing a countercurrent flow principle. In a counterflow tower air travels in the opposite direction (counter) to the direction of the falling water. Hot water enters the tower and spreads over fill media, which provides a large surface area for efficient heat exchange with the upward-moving air drawn in by fans or natural draft. This process, known as evaporative cooling, facilitates the transfer of heat from the water to the air. Cooled water is collected at the tower’s bottom and circulated back for reuse, while hot, moisture-laden air exits from the top. The countercurrent flow enhances heat exchange efficiency, allowing for a greater temperature difference between the water and air. Recognized for their efficiency, compact design, and versatility in handling diverse heat loads, counterflow cooling towers are extensively employed across industries to dissipate heat from various processes and maintain optimal operating temperatures.

KEY FEATURES

WE DO OUR BEST TO GIVE YOU EVERYTHING

CTI certified

Our cooling tower is CTI certified, with components complying to CTI STD.

MOC:

MOC: MSHDG / PULTRUDED FRP/ METAL

Fan Motor

Branded Electric Motor with Standard IE2 Motor with option of IE3 / IE4 / FLP / VFD / Electronically Commutated

Driven System

Equipped with Belt drive system with option of Direct drive / Gear drive.

Ladder Platform

Ladder, platform and safety railing facilitate ease of maintenance.

Axial Fan

Axial Fans with aerodynamic design blade profile, with dynamic balancing standard G6.3 balanced fans

FRP Louver

Water and sight tight design that minimizes splash out and the potential for algae formation inside the tower.

Single Cell

Multi cell option available with single cell capacity of 50-4770 CMH

Smooth Finish

Aesthetic smooth finish on both sides of FRP panel and water basin.

Ladder Platform

Ladder, platform and safety railing facilitate ease of maintenance.

HIGHLIGHTS

ELEVATING EXCELLENCE, DELIVERING DISTINCTION.

ASSEMBLY AND AVAILABILITY

Factory assembled and Worldwide

FILLS

FILM/PVC

THERMAL CAPACITY

Single Cell: 6300 TR
Multi Cell: 80TR - 3000TR

MATERIAL OF CONSTRUCTION

Pultruded FRP / Metal

DETAILS

COUNTER FLOW COOLING TOWERS

PRODUCT DETAILS

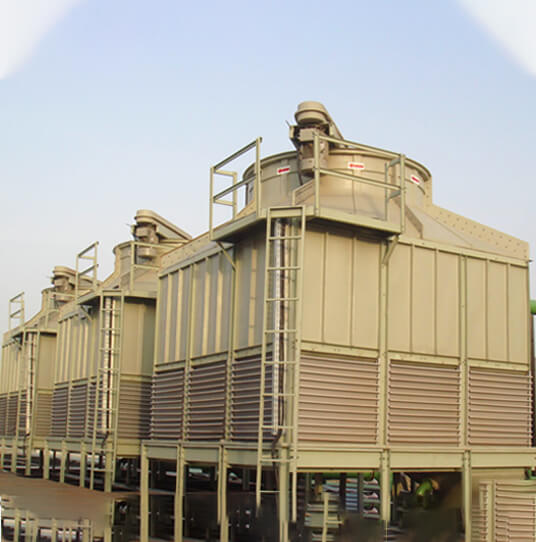

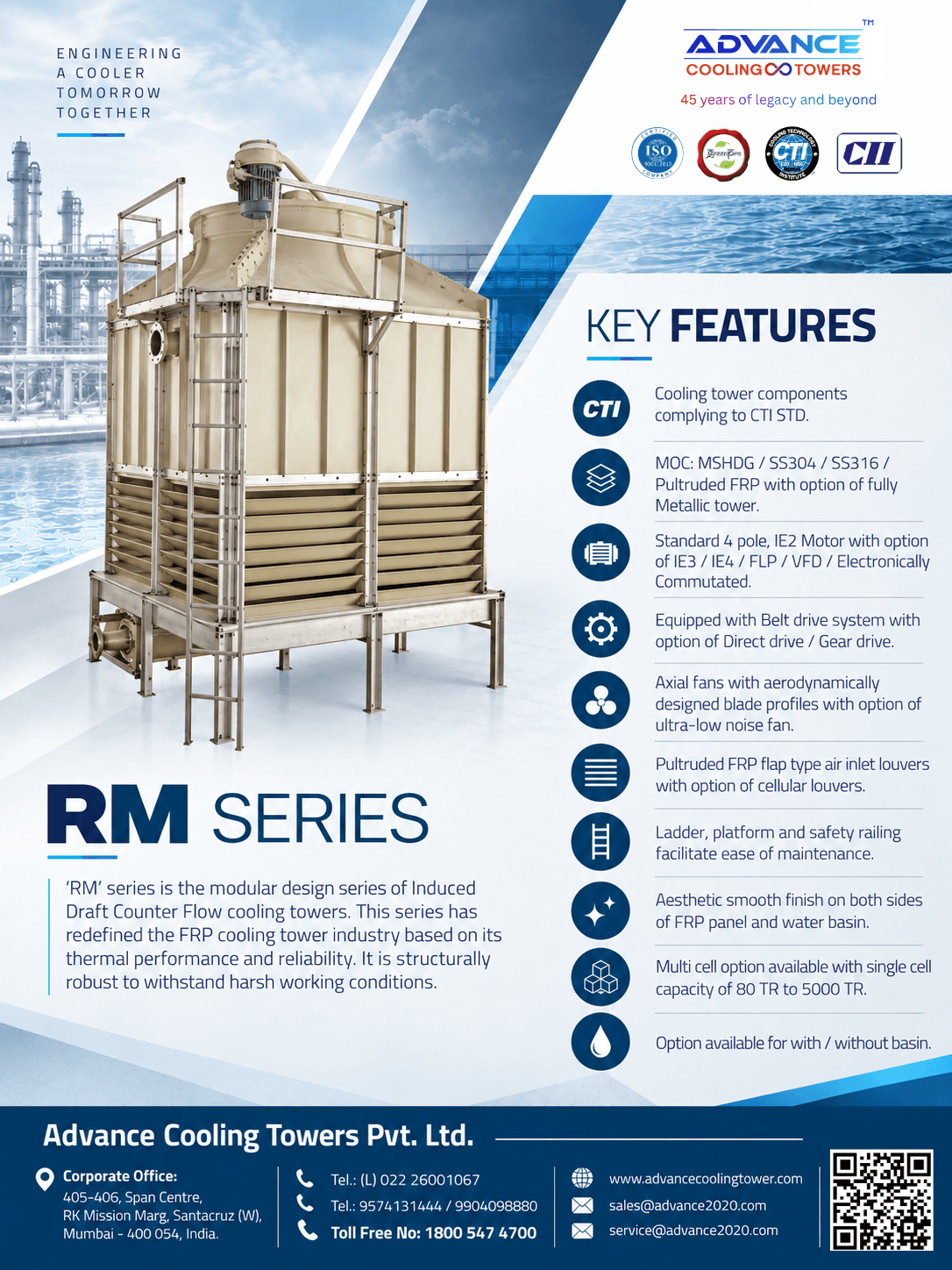

‘RM’ series is the modular design series of Induced Draft Counter Flow cooling towers. This series has redefined the FRP cooling tower industry based on its thermal performance and reliability. It is structurally robust to withstand harsh working conditions.

FEATURES

Cooling Towers components are in compliance with CTI Standard regulations.
Energy-efficient PVC heat exchange fills media are utilized, with a wide range of film fills available to suit various tower requirements.
Heavy Steel Gauge Structure is constructed according to IS Standard specifications, offering a high strength-to-weight ratio and resistance to corrosive environments.
Composite FRP compares favorably to traditional materials like Steel, Aluminum, and Wood.
Operations are streamlined with system-driven processes, achieving 70% faster delivery and erection of Cooling Towers components through module and modular design approaches.
Prefabricated components ensure 50% faster installation of Cooling Towers.
Advance Cooling Towers achieve a low drift rate of 0.005% of circulating water flow, resulting in minimal water loss from the towers.
Material options include MSHDG, SS304, SS316, or Pultruded FRP, with the possibility of fully Metallic towers.
Choice between Standard 4 pole, IE2 Motor, or options for IE3/IE4/FLP/VFD/Electronically Commutated motors.
Equipped with a Belt drive system, with options for Direct drive or Gear drive.
Axial fans feature aerodynamically designed blade profiles, with the option of ultra-low noise fans.
Air inlet louvers are available in Pultruded FRP flap type or cellular options.
Ladder, platform, and safety railing installation facilitate ease of maintenance.
Aesthetic smooth finish on both sides of FRP panels and water basins.
Multi-cell configuration available with capacities ranging from 80 TR to 3000 TR per single cell.
Options provided for Cooling Towers with or without basins.
