SM CROSS FLOW TOWERS
Crossflow cooling towers are a type of heat exchange system utilized for cooling water in industrial and HVAC applications. In these towers, hot water is distributed over fill media at the top, forming thin films or droplets. Air is then drawn horizontally across the descending water by fans or natural draft, moving perpendicular to the water flow. As the air passes through the descending water, heat is exchanged through the process of evaporative cooling. Cooled water collects at the tower’s bottom and is recirculated for reuse, while warm, moisture-laden air exits from the sides. Unlike counterflow towers, in a crossflow tower, air travels horizontally across the direction of the falling water. Known for their simplicity and ease of maintenance, crossflow cooling towers find widespread use in diverse applications for efficient heat dissipation.
KEY FEATURES
CTI Certified
Our cooling tower is CTI certified, with components complying to CTI STD.
Motor
Branded Electric Motor with Standard IE2 Motor with option of IE3 / IE4 / FLP / VFD / Electronically Commutated
Driven System
Equipped with Belt drive system with option of Direct drive / Gear drive.
MOC
MOC: MSHDG / PULTRUDED FRP
Axial Fan
Axial Fans with aerodynamic design blade profile, with dynamic balancing standard G6.3 balanced fans
FRP Louver
Water and sight tight design that minimizes splash out and the potential for algae formation inside the tower.
Single Cell
Multi cell option available with single cell capacity of 50-1250 CMH.
Smooth Finish
Aesthetic smooth finish on both sides of FRP panel and water basin.
Ladder Platform
Ladder, platform and safety railing facilitate ease of maintenance.HIGHLIGHTS
ASSEMBLY AND AVAILABILITY
FILLS
THERMAL CAPACITY
Multi Cell: 80TR - 3000TR
MATERIAL OF CONSTRUCTION
DETAILS

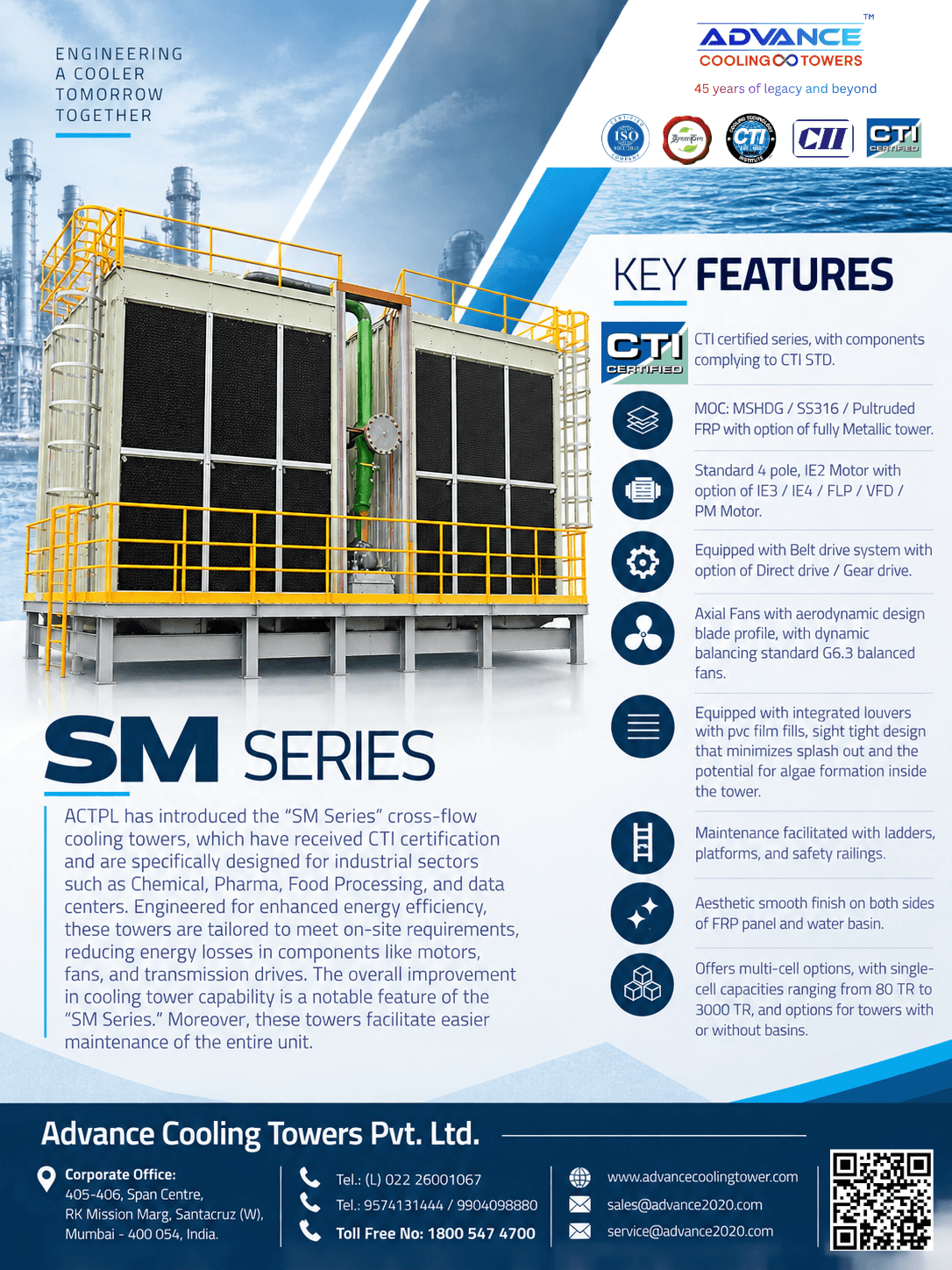

ACTPL has introduced the “SM Series” cross-flow cooling towers, which have received CTI certification and are specifically designed for industrial sectors such as Chemical, Pharma, Food Processing, and data centers. Engineered for enhanced energy efficiency, these towers are tailored to meet on-site requirements, reducing energy losses in components like motors, fans, and transmission drives. The overall improvement in cooling tower capability is a notable feature of the “SM Series.” Moreover, these towers facilitate easier maintenance of the entire unit.
